730 series high temperature insulation board
Glass fiber reinforcement + modified resin composite, high temperature stability/environmental safety/multi-field adaptation.
Category:
Key words:
high temperature insulation board
high temperature thermal insulation panel
high heat insulation board
-
Product Composition
Glass fiber reinforcement + modified resin composite, high temperature stability/environmental safety/multi-field adaptation.
Product Specifications
TYICH730A Color: Brown Size: 1220*2440 mm

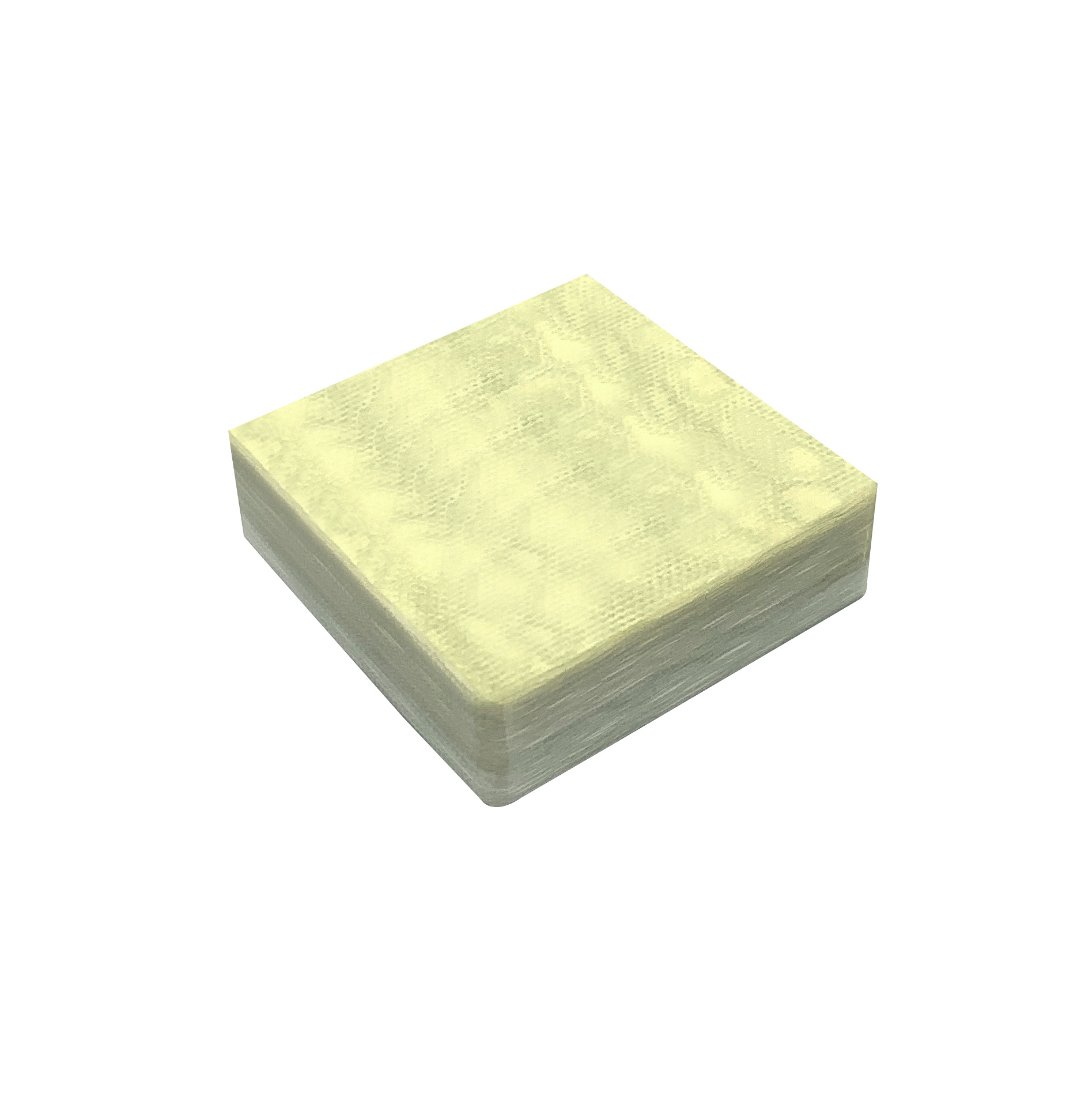

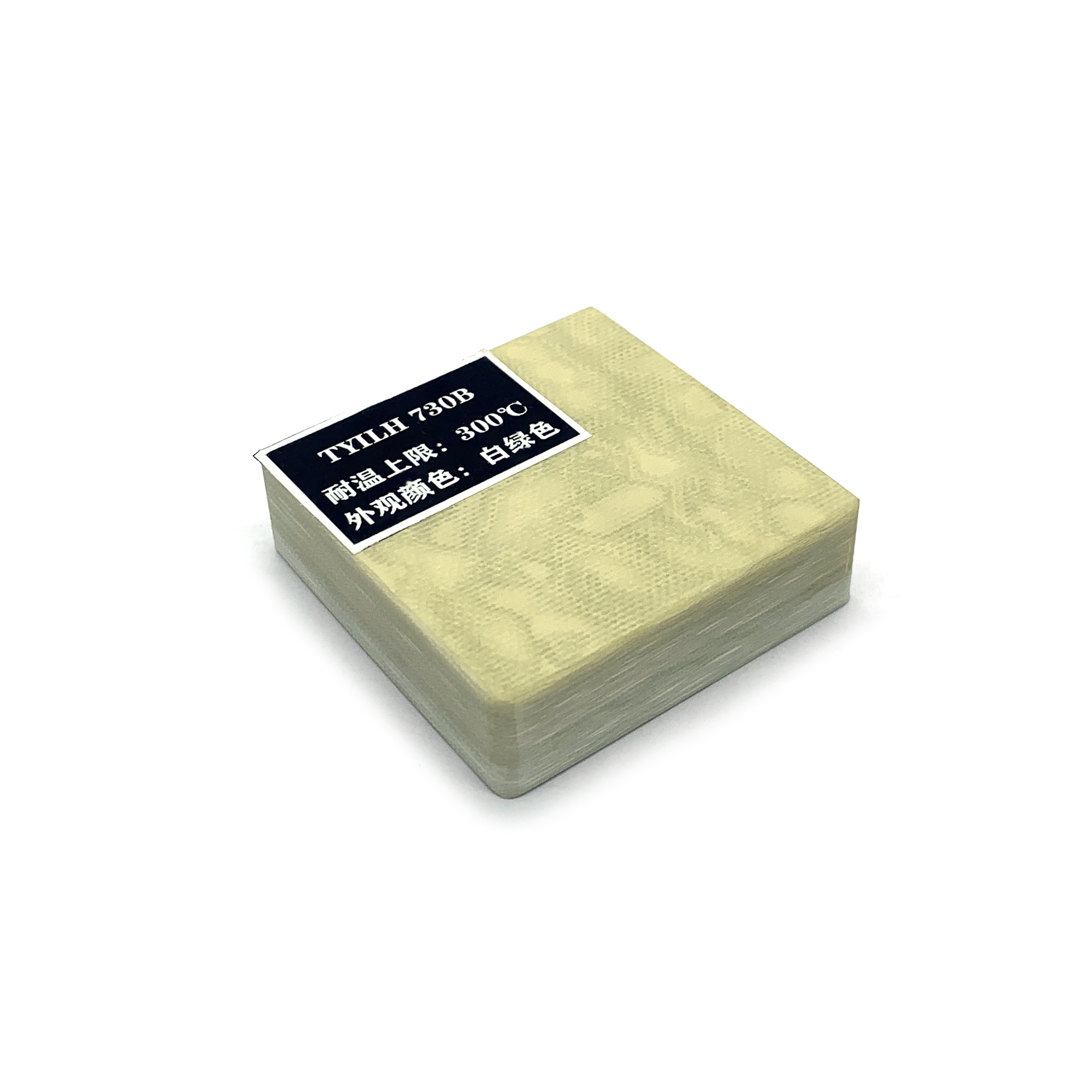

TYILH730B Color: White-green Size: 1220*2440 mm

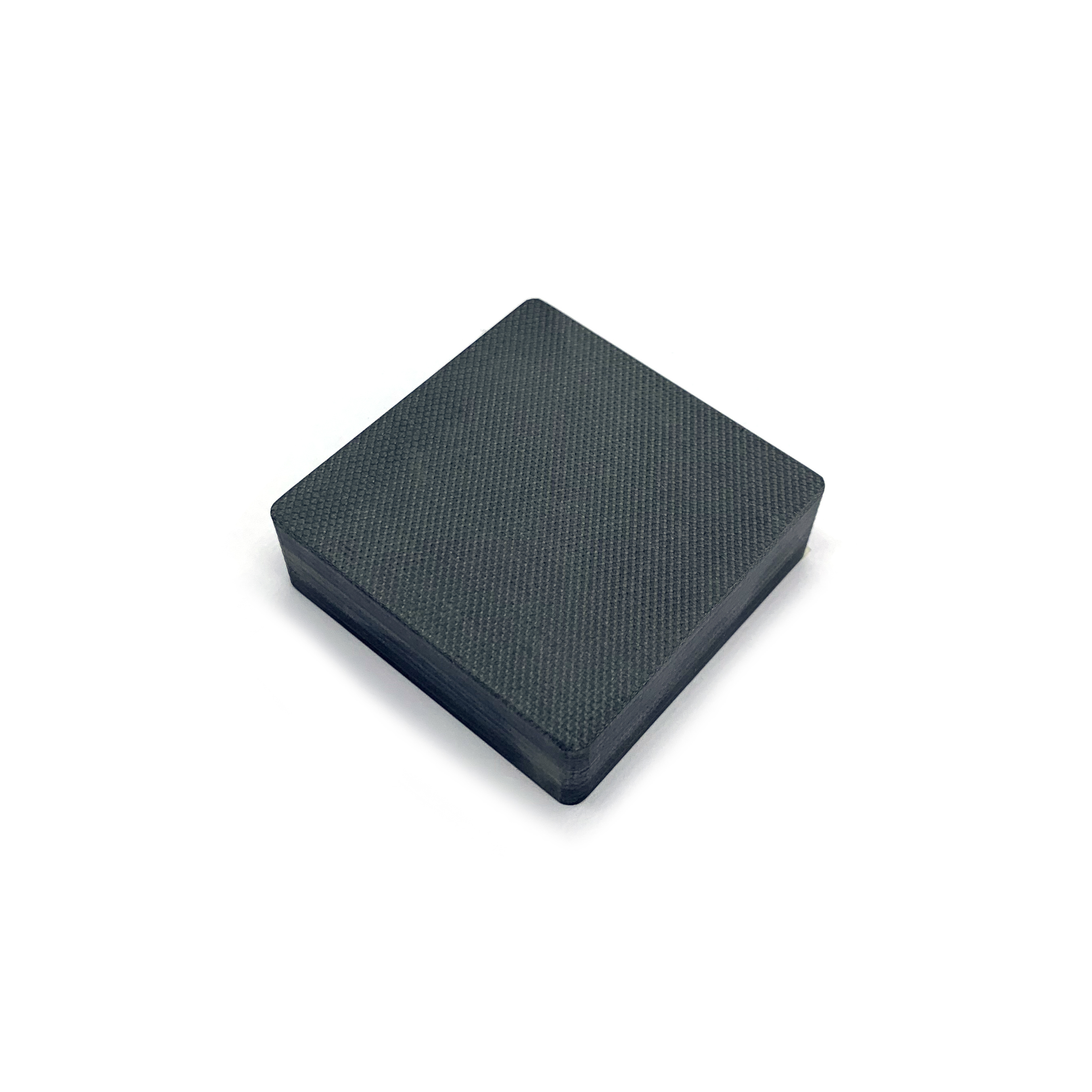

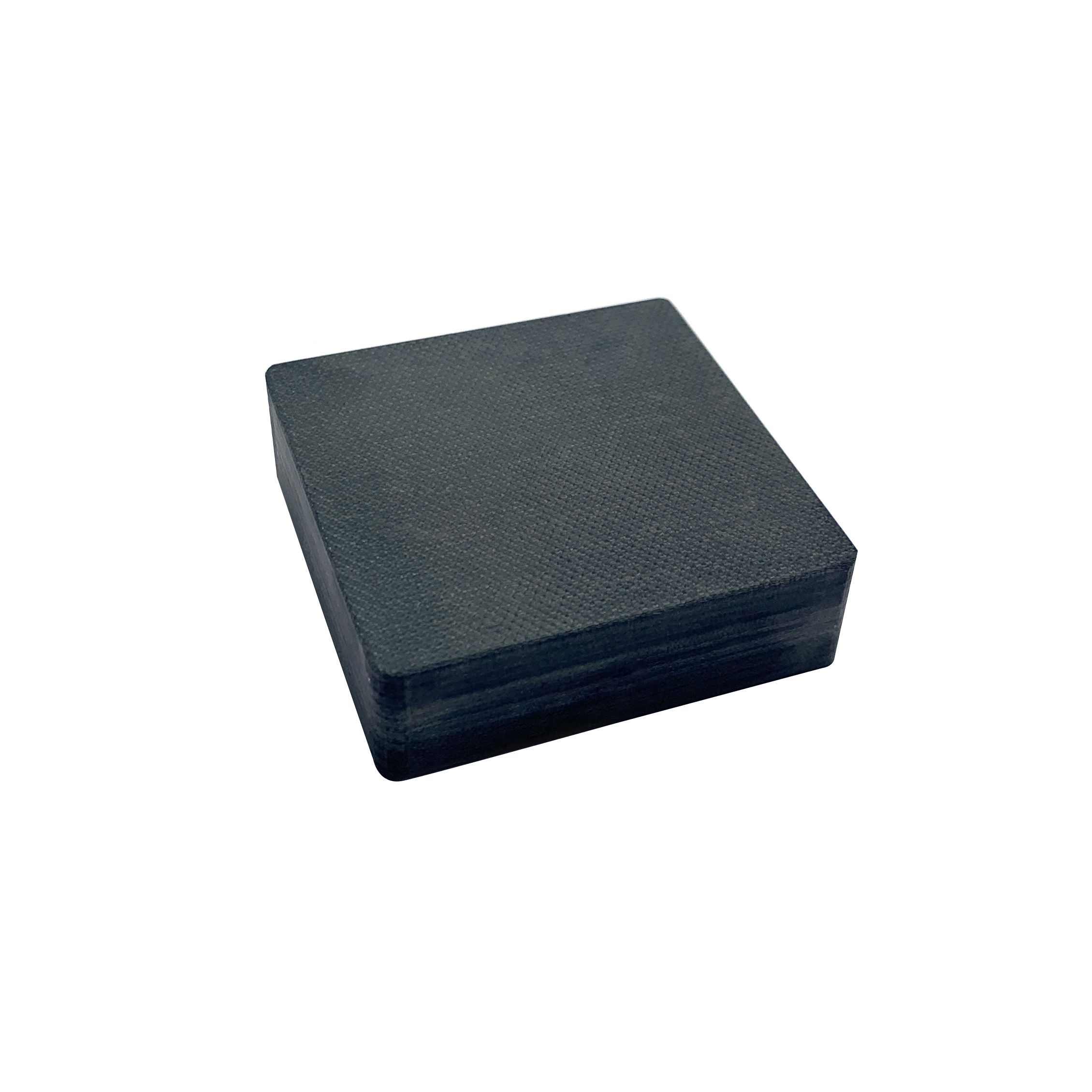

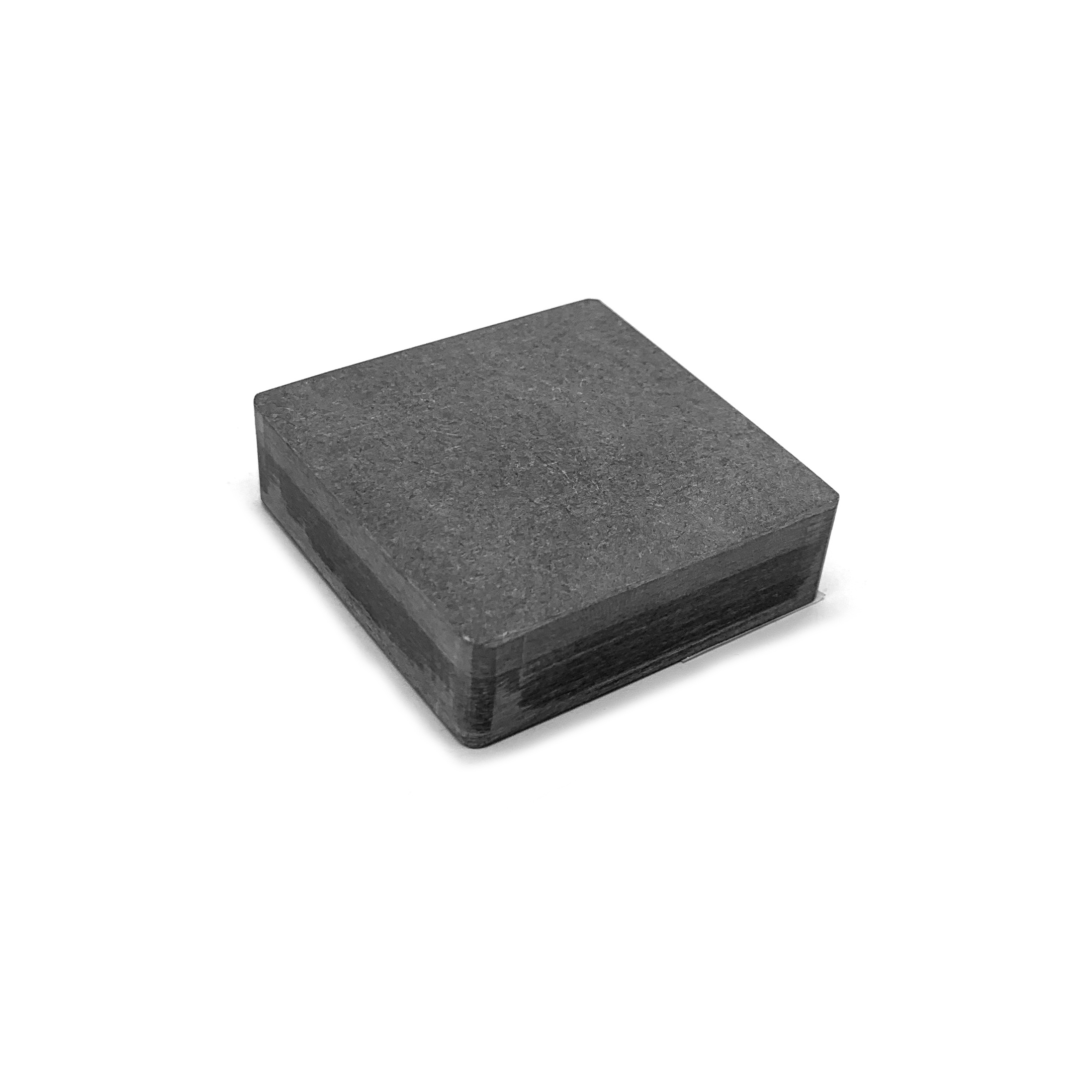

TYILH730D Color: Black Size: 1220*2440 mm
Performance Characteristics
1. Extreme temperature tolerance: Continuous and stable operation from room temperature to 300℃, peak resistance to high temperature impact of 350℃; modified resin + high-density glass fiber cloth lamination process, zero delamination and zero deformation at high temperature.
2. Super strong mechanical properties: compressive strength ≥30MPa (40% higher than traditional materials); no damage after 1.8J drop hammer impact (ASTM D256 standard); performance degradation <3% after 100,000 thermal cycles.
3. Environmental protection and safety certification: Comply with RoHS 3.0 and REACH 224 items of high concern substances; UL94 V-0 flame retardant, smoke density level ≤10 (low smoke and non-toxic).
4. Multifunctional protection design: IP68 waterproof and oil resistant, resistant to long-term immersion in hydraulic oil/coolant; resistant to strong acid and alkali corrosion (stable in the pH1-13 range).Advantages
1. Extreme cost performance
Purchase cost is reduced by 40%-55%, and the performance is comparable to high-end products in Germany and Japan
Full life cycle cost optimization: life ≥ 8 years (traditional 3-5 years), maintenance cost reduced by 70%
2. Material performance breakthrough
High temperature resistance: 300℃ continuous non-carbonization, 400℃ instant no damage
Strength upgrade: glass fiber tensile strength ＞3500MPa (military grade)
Thermal stability: Δ200℃ temperature difference cycle 100 times without cracking
3. Harsh environment protection
Waterproof and oil resistant: 30 days of immersion without penetration (DIN 40050-9)
Corrosion resistance: salt spray test 3000h (ASTM B117)
Flame retardant and low smoke: UL94 V-0 level, smoke density ≤5
4. Cutting-edge field certification
Aerospace: ESA satellite insulation layer certification
Medical equipment: ISO 13485 biocompatibility
Shipping industry: LNG ship -196℃ low temperature resistance test
5. Energy and environmental protection are both excellent
Energy saving efficiency increased by 28%-40%, heat radiation blocking>92%
Environmental compliance: REACH 224 SVHC control, recycling rate>85%Application Fields
1. Industrial machinery: high-end rubber and plastic molding equipment, hot runner molds, automated precision insulation components, flat hot presses
2. Medical and aerospace: high-temperature sterilization equipment, aviation component insulation, precision instrument protection
3. Energy and environmental protection: pulp drying equipment, packaging and printing machinery ovens, hot pressing energy-saving systems
4. Ships and transportation: engine compartment insulation, high-temperature pipeline protection
FAQ
Is there a discount for purchase?
Is there a discount for purchase?
Yes! We offer preferential prices based on the order quantity. Please contact our business staff for details on the specific discount. We will provide you with the most favorable plan based on your order quantity!
What if there is a color difference between the actual product and the picture?
What if there is a color difference between the actual product and the picture?
All our products are taken from real objects. However, due to factors such as shooting environment, light, and differences in parameter settings of different display devices, there may be slight color differences between the pictures and the actual products you receive. Please refer to the actual product received for the product color.
How is the product packaged?
How is the product packaged?
Conventional packaging is pallets for plates, wooden boxes for bars, cartons for processed parts or according to customer requirements.
How long does it usually take to deliver?
How long does it usually take to deliver?
Generally, our standard delivery cycle is 7 to 30 days after receiving the deposit to confirm the order. Please note that the exact time may vary depending on the specific product model you ordered, the complexity of the process, and the quantity ordered. For customized products or large-volume orders, we will provide a more precise delivery schedule when confirming the order.
How does your company ensure product quality?
How does your company ensure product quality?
Product quality is our primary concern. We have established a complete quality control system that runs through the entire process of raw material procurement, production process and final product inspection. We adopt strict standards and ensure that every product delivered to customers meets requirements and standards through methods such as ISO9001 certification and multiple quality inspection processes.
Can you cut or engrave it into the shape we want?
Can you cut or engrave it into the shape we want?
Yes. We have large cutting machines and engraving machines that can be customized.
